Instruments for Gas Analysis
A range of gas analysis systems to accommodate sampling from vacuum to 30 bar, for gases, vapors and dissolved gases in single and multi-stream configurations and high temperature options.
Advanced Gas Analyzer Equipment by Hiden Inc.
Hiden Inc. is a gas analyzer manufacturer and respected developer, supplier, and champion of scientific equipment. Our high-performance precision instruments are used in a wide variety of applications where precision, stability and accuracy at both the atomic and molecular level are paramount.
Our products, workstations, and probes remain the core of many institutions— we hope they will serve yours equally.
Hiden Inc.’s Gas Analyzers for Scientific Applications
QGA 2.0
Compact, bench-top real time gas and vapor analysis system featuring 200 amu or 300 amu mass range options. 100 ppb detection limit and up to 1000 measurements per second.
The new system builds upon the solid foundation of our original QGA system, incorporating significant enhancements for improved performance and ease of use. The QGA 2.0 is lighter, more user-friendly, environmentally considerate, and packed with powerful features.
- 📏 Compact – 42% Smaller Footprint
- 🍃 Lightweight – 26% Lighter
- 🌿 Sustainable – Eco-friendly Materials
🚀 Enhanced Performance
- 🔬 Optimized – For Gas & Vapor Species
- ⚡ Speed – Up to 1000 Measurements per Second
- 🖥️ Intuitive – QGA 2.0 Software Package
- 🟢 Simplified – 1-Button Start-up
- 🧠 Advanced – New Electronics Package
- 🛠️ Versatile – Compatible with a Selection of Inlets
Applications
- High Purity Gas Analysis
- Fermentation
- Fuel Cells
- Gas Production & Storage
- Environmental Monitoring
- Gas Separation Studies
- Mud Logging (Oil Exploration)
HPR-20 R&D
Applications
- Thermal Analysis TA/MS
- Catalysis
- Fuel Cells
- CVD/MOCVD/ALCVD
- Environmental Monitoring
- Glove Box Monitoring
- Gas Separation Studies
- Mud Logging (Oil Exploration)

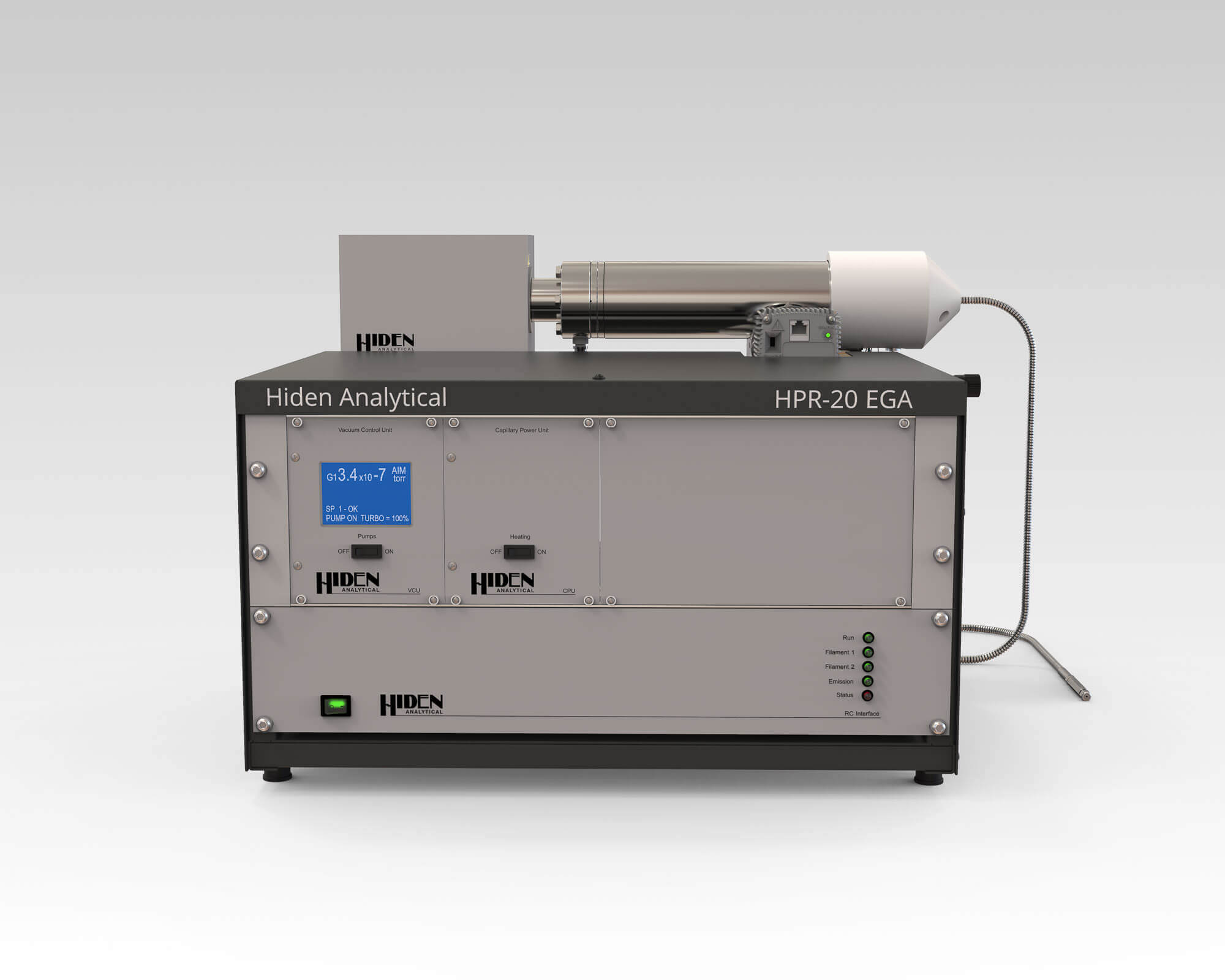

HPR-20 EGA & TGA-MS
Applications
- Thermal Analysis TA/MS
- Catalysis
- Fuel Cells
- CVD/MOCVS/ALCVD
- Environmental Monitoring
HPR-20 TMS
Fast response transient gas analysis system featuring dedicated pulse ion counting detector for fast analysis of rapidly changing gas concentrations. For example, switching % to PPM levels of H2S in He within 200 msecs.
Applications
- Thermal Analysis TA/MS
- Catalysis
- Fuel Cells
- CVD/MOCVS/ALCVD
- Environmental Monitoring
- Human Breath Analysis
- Gas Separation Studies
- Mud Logging (Oil Exploration)
HPR-20 DLS
Applications
- Hydrogen Isotope Studies
- Nuclear Fusion Research
- Glovebox Monitoring
HPR-20 EPIC
The Hiden HPR-20 EPIC gas analysis system is configured for continuous analysis of gases and vapors at pressures near atmosphere in standard form, alternative inlet systems being offered for applications requiring direct sampling from higher pressures to 30 bar.
The system includes the Hiden EPIC triple filter mass spectrometer including a high gain pulse ion counting electron multiplier detector with positive and negative ion detection. Analysis is both by standard electron impact ionization and by appearance potential soft ionization (APSI-MS).
Additionally, the system includes a software selectable mode, electron attachment mass spectrometry (EA-MS), to analyze negative ions formed within the internal ionizer by electron attachment. The electron attachment mode provides vital information for investigating electronegative species, identifying the parent molecules of stable radicals from plasma processes for example.
Applications
- Atmospheric Gas Reaction Kinetics
- High Purity Gas Analysis
- Glovebox Monitoring
HPR-20 S1000
Applications
- Thermal Analysis TA/MS
- Catalysis
- Fuel Cells
- CVD / MOCVD / ALCVD
- Environmental Monitoring
- Glovebox Monitoring
- Gas Separation Studies
QIC Biostream & QIC Multistream
Applications
- Fermentation
- High Purity Gas Studies
- Gas Production and Storage
- Environmental Monitoring
- Thermal Hydraulic Testing
HPR-40 DSA (MIMS and DEMS)
Applications
- Dissolved Species Analysis
- Fermentation
- Environmental Monitoring
- DEMS
- Fuel Cells
- Gas Separation Studies
HPR-60
Applications
- Plasma Characterization
- Gas Reaction Kinetics
- Environmental Studies
- Catalysis Characterization
- Gas Separation Studies
HPR-70
Applications
- Sealed Volume Studies
- Discrete Sample Analysis
- Qualitative Determination
- Remote Sample Acquisition
- Local Analysis
HPR-90
Sealed package gas analyzer with integral package cracker designed to analyze the fill gases and vapors of a wide range of sealed packages including food packaging, architectural glass, electronic devices, lightbulb, and lamp gas studies. PPB sensitivity for gas and vapors in hermetically sealed packages.
Applications
- Fill Gas Analysis
- Sealed Volume Analysis
- Quality Control Studies
Application Specific Software for Gas Analysis
MASsoft Professional: Multi-Level software for “easy wizard” control of the Hiden Mass Spectrometer range. Includes custom experiment design module for comprehensive instrument access, external device control, complete data analysis and manipulation.
QGA Professional: Single and multistream quantitative gas and vapor analysis. Real time continuous gas of up to 32 gases and 80 streams with detection from % to 0.1 ppm.
EGAsoft: Dedicated evolved gas analysis software featuring peak integration, peak deconvolution with multiple Gaussian curve fitting and data export to a wide range of TGA’s.
